E-RELAY

€119.00

sold out

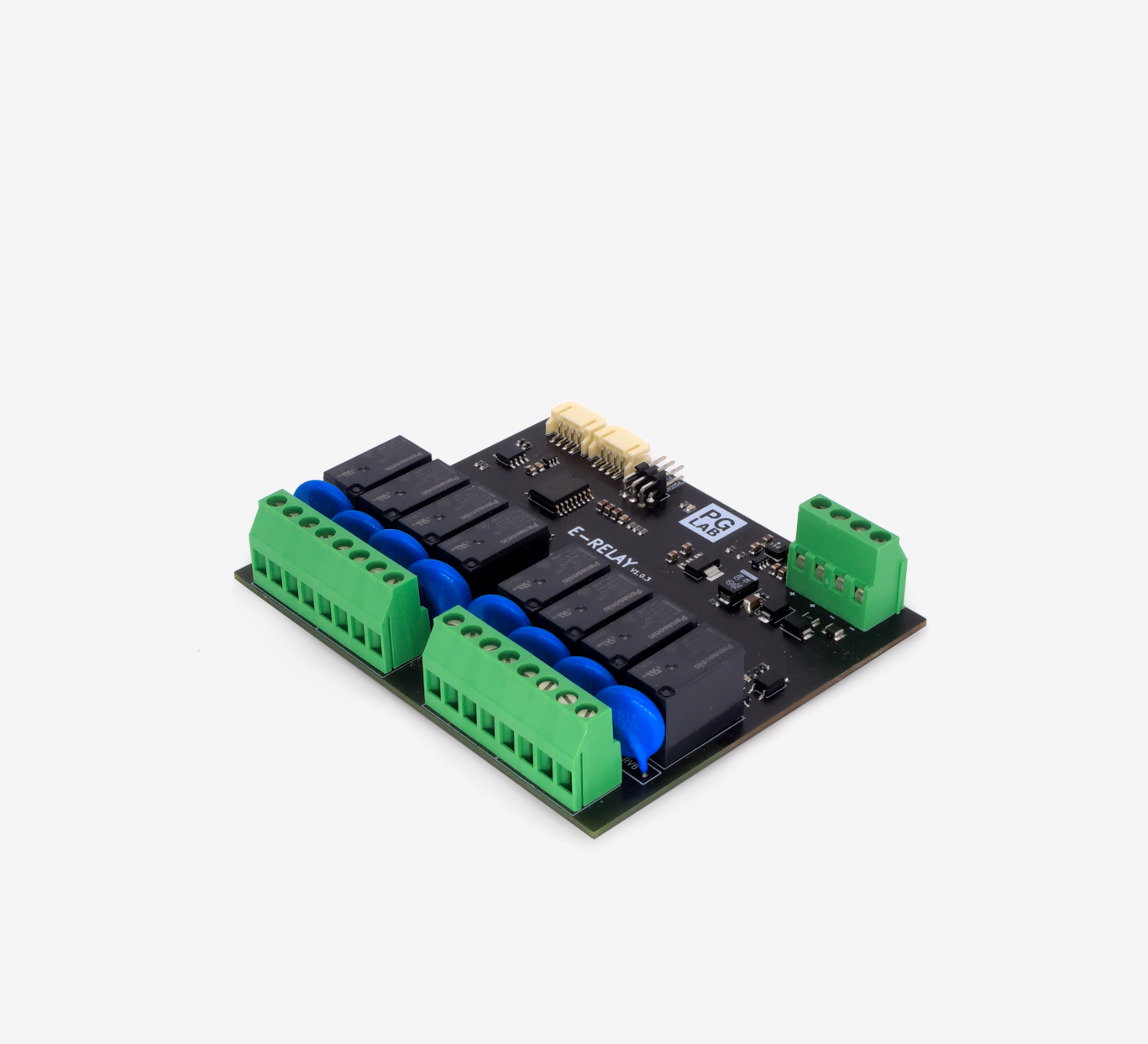

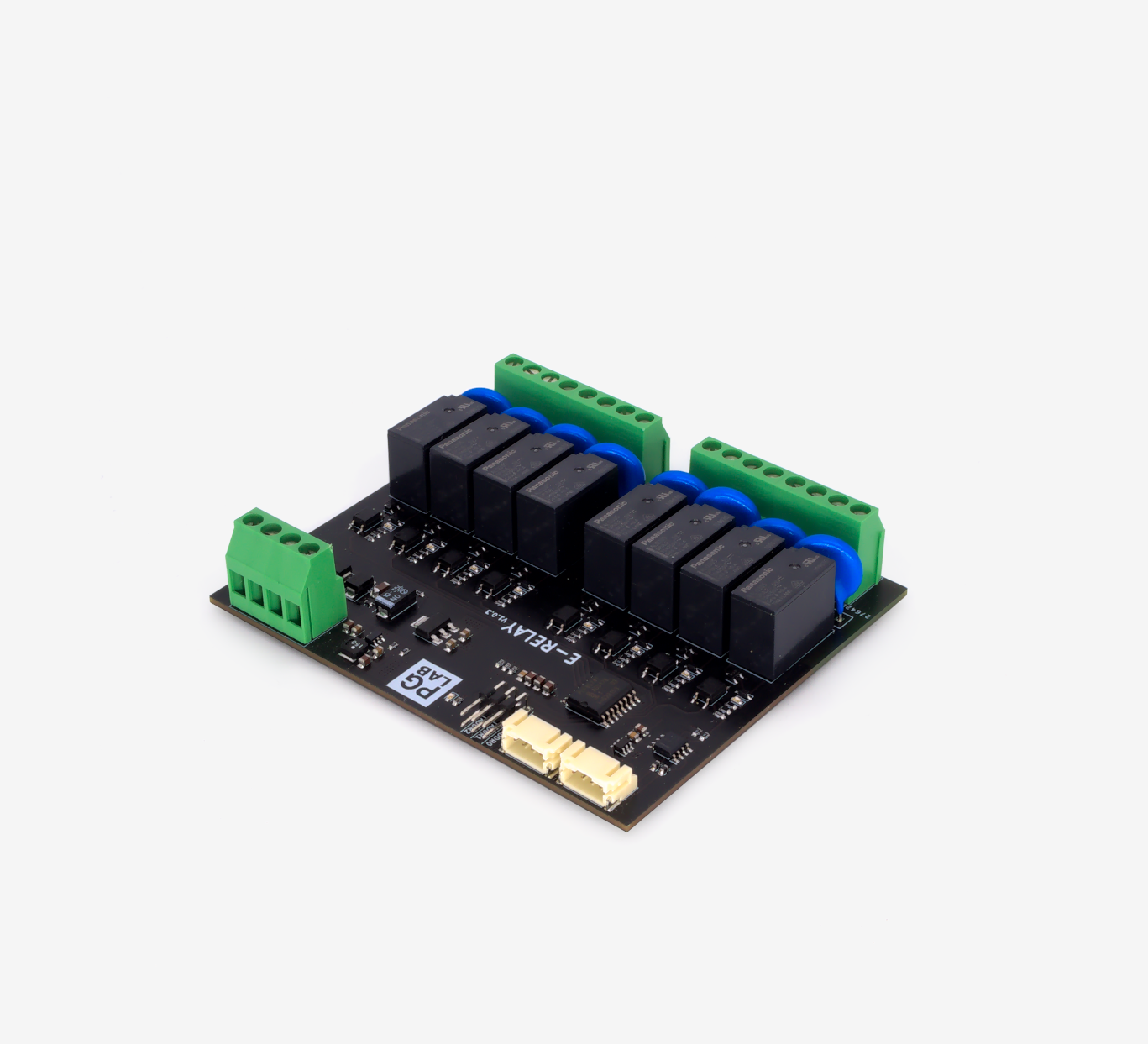

The E-RELAY is a power board device that has been designed for switching ON/OFF 8 high powered loads.

AVAILABLE IN STARTER KIT

The E-RELAY is a power board device that has been designed for switching ON/OFF 8 high powered loads.

AVAILABLE IN STARTER KIT

Overview

E-RELAY uses Panasonic relays rated up to 5 Amps 250 V AC per channel. Each channel is Normally Open (NO), optically isolated, has its own status LED, and screw terminals output. E-RELAY output is protected from high voltage spikes by varistors. Therefore, E-RELAY can be used with switching inductive loads.

At the heart of the E-RELAY is an PCF8574 that takes I2C commands to toggle the 8 relays. The I2C address of the E-RELAY is configurable by a 3 way PIN header. This allows a single E-BOARD to control a daisy chain with a maximum of 8 E-RELAY devices. This means a single E-BOARD can control up to 64 high voltage loads.

E-RELAY has many safety precautions on the PCB including wide traces designed for high amperage and ground isolation between the relay and other circuitry. E-RELAY is a power device for users who are experienced with and knowledgeable about high AC voltage.

It must be used in combination with E-BOARD.

Getting started guide Is available here.

Main features

8 Output Power Relay Panasonic ALQ305
PCF8574 for I2C control power relays
I2C address by PIN header
I2C IN and OUT port for daisy chain connection
Clean output contacts optically isolated
Varistors to protect from spikes when switching inductive loads
Status LED for each relay

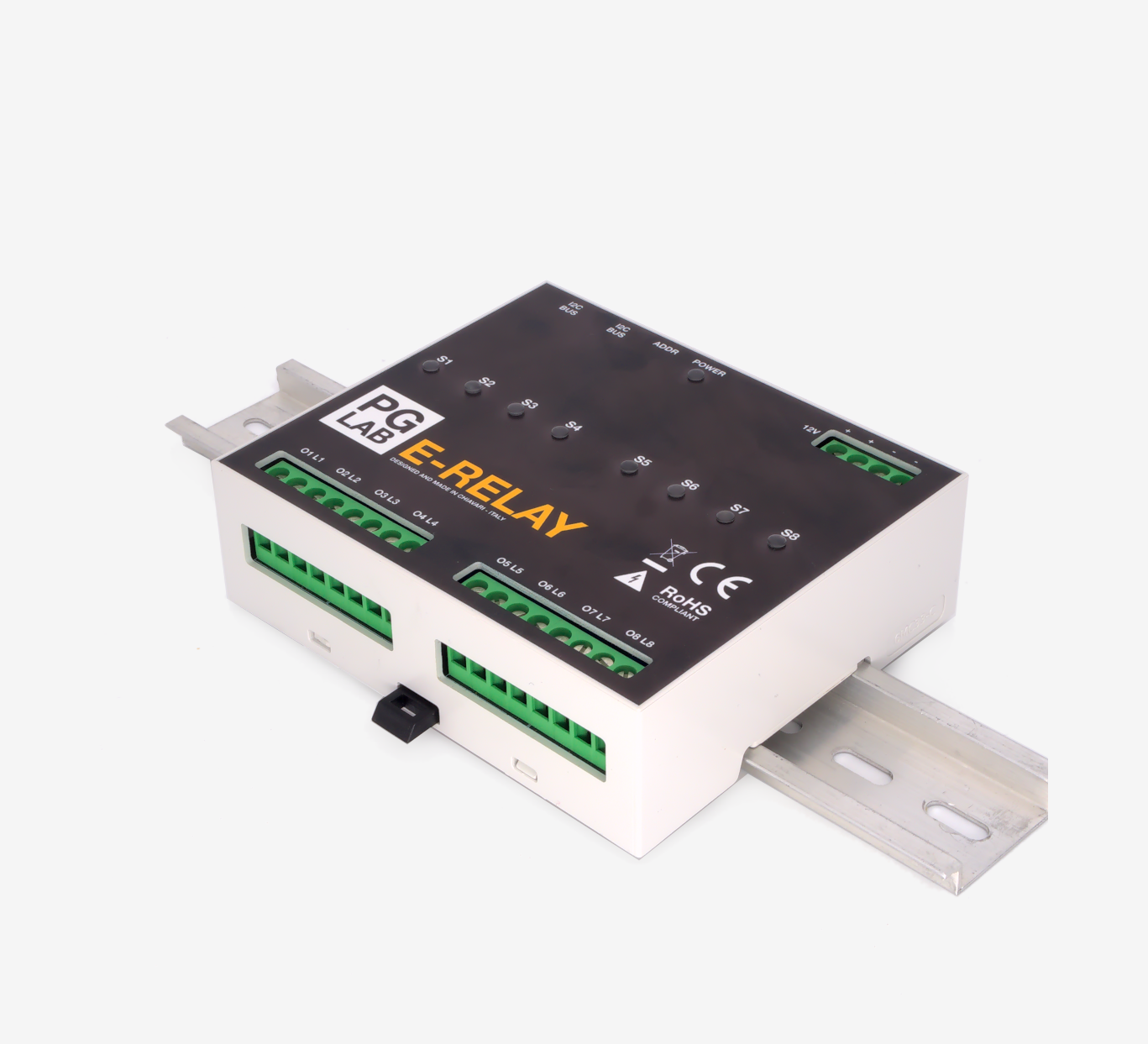

DIN rail mountable
12 VDC power input

Specification


    Installation

    Mounting Type
    35 mm DIN rail mountable

    Mounting Width
    6 spacing units wide

    Supply Voltage

    Standard Input Voltage
    12 VDC

    Supply Current
    10 mA all relay OFF
200 mA all relay ON

    Permissible Voltage Range
    9 - 20 VDC

    Circuit Operating Voltage
    3.3 VDC / 5.0 VDC

    Protection
    Transient protected

    Hardware Features

    Relay
    Panasonic ALQ305 250V/5A

    Relay Expected
Mechanical Life
    Min. 107 (at 180 times/min.)

    Output Terminal
    Optical isolated
Normally Open (NO)

    Output Terminal Protection
    High voltage spikes
protection with varistor

    Interface Port

    Signal Lines
    I2C with P82B715DR bus extender

    Interface Port Protection
    ESD, transients

    Physical

    Dimension (HxWxD)
    98x105x32 mm

    Weight
    205.7 gr

    Enviromental

    Ambient Temperature
    0 - 55 °C

Conformities

The following Declarations of Conformities have been granted for this board:

CE RoHS

For any further information about our certifications please download CE Conformity.

Warranty

You can find your product warranty information here
